Color Coated Aluminum Coil
Created with Pixso.

3105 Color Coated Aluminium Coil Sheet 1000 Series 3000 Series 5000 Series

3105 Color Coated Aluminium Coil Sheet 1000 Series 3000 Series 5000 Series

Model Number: 1050, 1060, 3003, 3004
MOQ: 3 Ton
Price: USD 3700-4000/Ton
Payment Terms: T/T
Supply Ability: 1000 ton/month
Detail Information
Place of Origin:
China
Certification:
ISO9001, CE
Material:
Aluminum
Grade:
1000 Series/3000 Series/5000 Series
Surface:
PE, PVDF Coated
Thickness:
0.25-1.0mm
Width:
50-1250mm
Place Of Origin:
Hebei, China
MOQ:
3 Tons
Application:
Ceiling, Roof
Packaging Details:
Carton and wooden plate
Supply Ability:
1000 ton/month
Highlight:

3105 aluminum coil 5000 Series

,

3105 Color Coated Aluminum Coil

,

3105 Aluminium Coil Sheet

Product Description

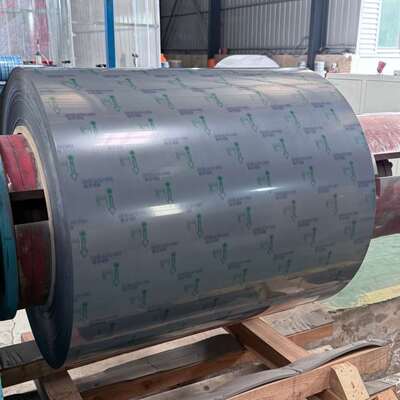

3105 Color Coated Aluminum Coil






Product Description:



Our 3105 Color Coated Aluminum Coil is specifically designed to offer a balance between the strength of the 3xxx series and the excellent surface quality required for decorative coatings. As an aluminum alloy with manganese and magnesium, it provides greater strength than both the 1xxx series and alloy 3003 . It boasts excellent corrosion resistance, good plasticity, and is renowned for its superior formability across all tempers, making it exceptionally versatile .



This alloy takes our high-quality coating process exceptionally well. The continuous roller coating line ensures a flawless, uniform surface ideal for both Polyester (PE) and the highly durable Polyvinylidene Fluoride (PVDF) finishes.



We provide 3105 coil in thicknesses ranging from 0.25-1.0mm and widths from 10-1275mm. The 2-coating process delivers a consistent topcoat of 20-28 microns. We offer a spectrum of colors, including silver gray and pure white, and can precisely match any RAL color specification. 3105 is the preferred base material for residential siding, mobile homes, rainware, bottle caps, and as a prime substrate for color coating applications







Features:



Excellent Formability
Our aluminum substrates are manufactured using highly ductile alloys (such as 3003 and 3105), which, combined with the flexibility and adhesion of our coatings, deliver outstanding workability. Whether undergoing stamping, bending, deep drawing, embossing, or roll forming, the coating remains intact without cracking or peeling. This provides designers with the material foundation to realize complex architectural shapes, making it suitable for irregular roofing systems, embossed decorative panels, and other sophisticated applications.

Excellent corrosion resistance
The surface coating (e.g. fluorocarbon paint, polyester paint) effectively isolates air, moisture and acid-base substances, significantly improving the anti-rust performance of aluminum, with an outdoor service life of 15-20 years.

Lightweight yet high-strength with excellent processability
With a density only about 1/3 of steel, it is light in weight but high in strength, and can be easily bent, stamped, rolled and other forming processes to adapt to complex architectural shapes and product structures.

Environmentally friendly, energy-saving and recyclable
Aluminum itself is 100% recyclable with low energy consumption in the recycling process; the coating materials are mostly eco-friendly formulas with no harmful substance emission, complying with international environmental standards.

Easy installation with low maintenance cost
The lightweight feature reduces transportation and installation difficulty, ensuring high construction efficiency; the smooth surface coating is easy to clean, requiring no special daily maintenance and bringing low long-term use cost.







Technical Parameters:



  Thickness

  0.25-1.0mm

  Dimension

  1250mm

  Color

  Ral colors or based on requirements,Imitation wood grain

  Coating film

  15-60μm

 Protection film

  Client brand

  Coating

  PE, PVDF, etc

  Alloy

  AA1150,1160,1100, 3003, 3004,3105

  Warranty

  15-30 years based on surface coating

  Package

  Eye to wall, eye to sky, coils on wooden pallet





3105 Color Coated Aluminium Coil Sheet 1000 Series 3000 Series 5000 Series 0



About Us

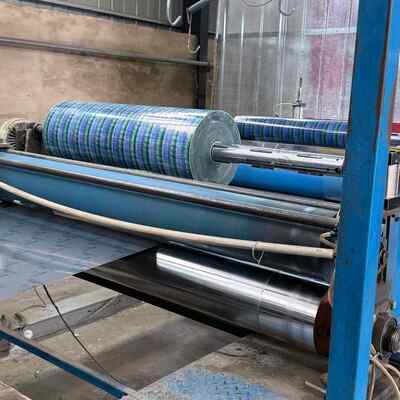

LANGFANG RONGDA METAL PRODUCTS CO., LTD. is located in Xinzhen, Wen'an, which is known as the "Hometown of Keels" in Langfang City, Hebei Province, China. It was founded in 1992, products include bright aluminum and color coated aluminum. The sales footprint spans the globe. The annual production of color coated aluminum coils exceeds 50,000 tons. Our company covers an area of 30,000 square meters and has 130 employees. We have 3 production lines integrating cleaning, drying, roll coating, and slitting. The daily shipment volume is 200 tons, and the annual sales amount reaches 1.3 billion yuan.







3105 Color Coated Aluminium Coil Sheet 1000 Series 3000 Series 5000 Series 1



FAQ:



What are your prices?

Our prices are subject to adjustment based on supply conditions and other market factors. We will forward you an updated price list upon your company’s inquiry for further details.


Are you trading company or manufacturer ?
We are a manufacturer major in aluminum and aluminum products.

How’s the package?
Normally are cartons, but also we can pack it according to your requirements.

How’s the delivery time?
It depends on the quantity you need, 1-25 days usually.

How about the quality?
We have the best professional engineer and strict QA and QC system.

How to get the free quotation and solution advice?
Please kindly send us your inquiry via message or email, our sales manager will contact you within 24 hours.

What payment methods do you accept?
T/T & L/C.
