| Model Number: | 1050, 1060, 3003, 3004 |
| MOQ: | 3 Ton |
| Price: | USD 3700-4000/Ton |
| Payment Terms: | T/T |
| Supply Ability: | 1000 ton/month |

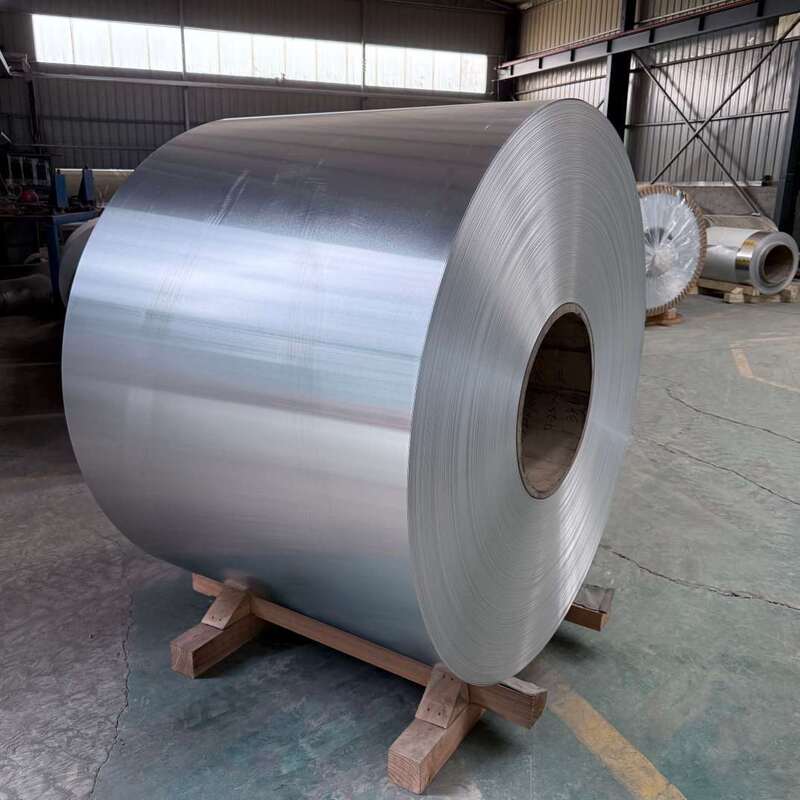

1050 H14/H24 Aluminum Coil with Excellent Formability
Common Tempers (States)
The temper designation indicates the level of hardness and strength achieved through mechanical processing .
Temper Description Key Characteristics
O Soft / Annealed Maximum ductility, lowest strength, excellent for deep drawing and complex forming .
H12 1/4 Hard Strain-hardened to a quarter-hard level. Balanced formability and strength for general fabrication .
H14 Half Hard (Most Common) Strain-hardened to a half-hard level. The most popular temper for general sheet metal work, offering an excellent balance of strength and formability .
H16 3/4 Hard Strain-hardened to a three-quarter-hard level. Higher strength with reduced formability .
H18 Full Hard Strain-hardened to maximum strength, minimum ductility. Suitable for applications requiring rigidity .
H22, H24, H26 Strain-hardened & partially annealed Intermediate tempers that offer specific balances between strength and formability for specialized applications .
H111, H112, H114 As fabricated Tempers suitable for specific forming requirements .
Thickness Range
1050 aluminum coil is available in a wide range of thicknesses to suit various applications .
Standard Range: 0.1 mm – 8.0 mm (0.004" – 0.315") .
Thin Gauge: Can be as low as 0.2 mm for applications requiring lightweight materials .
Heavy Gauge: Up to 8.0 mm for industrial applications requiring thicker material .
Note: Mechanical properties like tensile strength and elongation can vary slightly depending on the specific thickness within a temper.
Width Range
The width of 1050 aluminum coils is highly customizable depending on the supplier's slitting capabilities .
Common Width Range: 40 mm – 2650 mm (approx. 1.57" – 104") .
Slitting Capabilities: Coils can be slit to specific widths, with capabilities ranging from narrow strips to wide format coils.
Typical Applications Width: For transformer winding applications, widths commonly range from 50 mm to 1200 mm .
Common Applications
Thanks to its high purity, excellent conductivity, and corrosion resistance, 1050 aluminum coil is used across a vast range of industries .
Electrical & Electronics
Battery soft connections and terminals
Transformer winding strips
Capacitor shells and components
Busbars and conductors
CTP plate and PS plate base
Industrial & Manufacturing
Chemical industry containers and equipment
Heat sinks and thermal management components
Daily necessities and utensils
Electronics housings
Packaging applications
|
Thickness |
0.25-1.0mm |
|
Dimension |
1250mm |
|
Coating film |
15-60μm |
|
Protection film |
Client brand |
|
Coating |
PE, PVDF, etc |
|
Alloy |
AA1150,1160,1100, 3003, 3004,3105 |
|
Warranty |
15-30 years based on surface coating |
|
Package |
Eye to wall, eye to sky, coils on wooden pallet |
LANGFANG RONGDA METAL PRODUCTS CO., LTD. is located in Xinzhen, Wen'an, which is known as the "Hometown of Keels" in Langfang City, Hebei Province, China. It was founded in 1992, products include bright aluminum and color coated aluminum. The sales footprint spans the globe. The annual production of color coated aluminum coils exceeds 50,000 tons. Our company covers an area of 30,000 square meters and has 130 employees. We have 3 production lines integrating cleaning, drying, roll coating, and slitting. The daily shipment volume is 200 tons, and the annual sales amount reaches 1.3 billion yuan.
Our prices are subject to adjustment based on supply conditions and other market factors. We will forward you an updated price list upon your company’s inquiry for further details.
